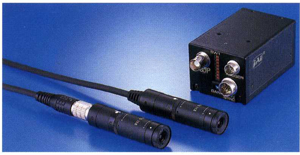

The MML-ST-CM/CS1 Series consists of small diameter, light weight models that achieve fine pitch and small space through special mounting of compact camera heads. The series is intended for use with diameter 17 mm (M15.5 P0.5) mounts. |
  |
For use with compact camera (diameter 17 mm)
MML-ST-CM Series
The MML-ST-CM/CS1 Series consists of small diameter, light weight models that achieve fine pitch and small space through special mounting of compact camera heads. The series is intended for use with diameter 17 mm (M15.5 P0.5) mounts. |
|

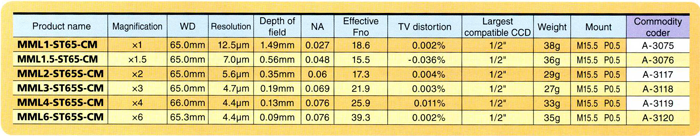

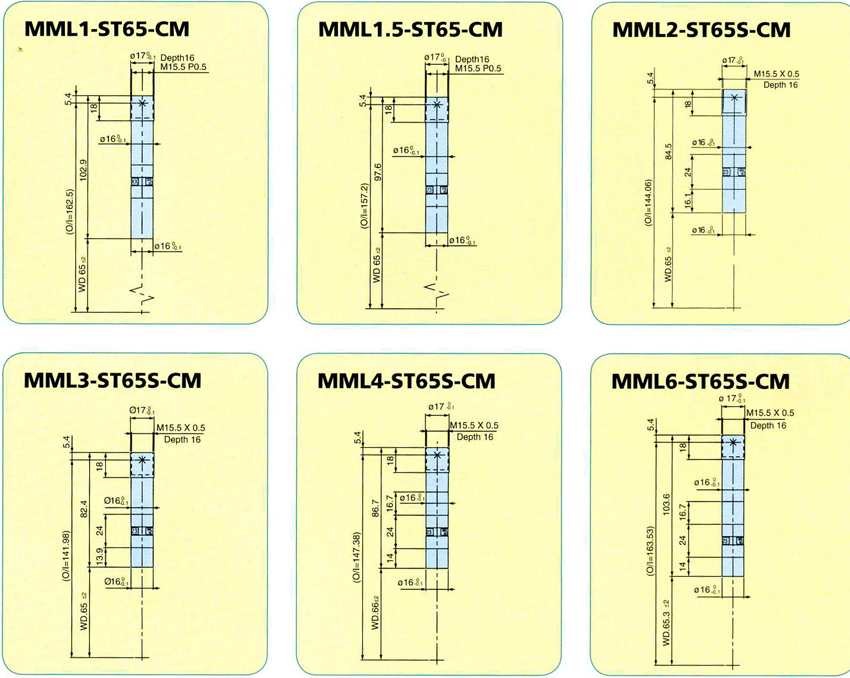

WD65mm
*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.

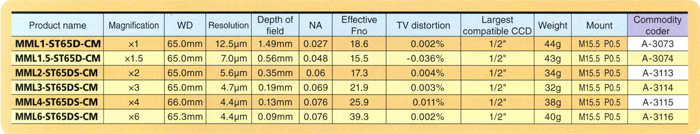

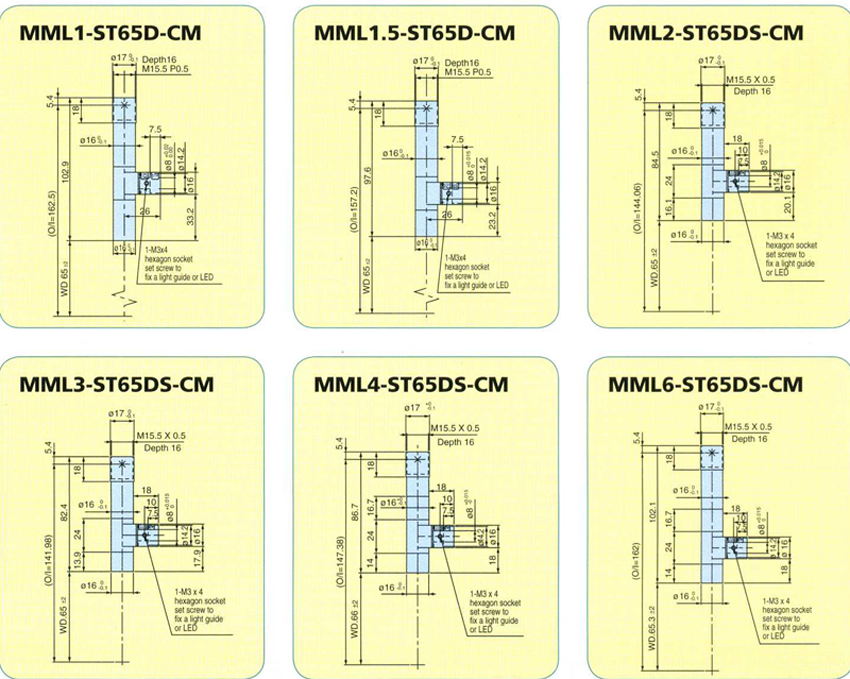

WD65mm
*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
*Resolution values are for theoretical resolution at a wavelength of 550nm.

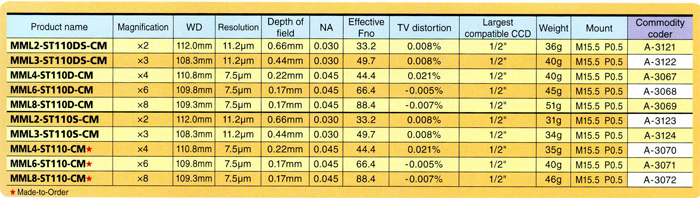

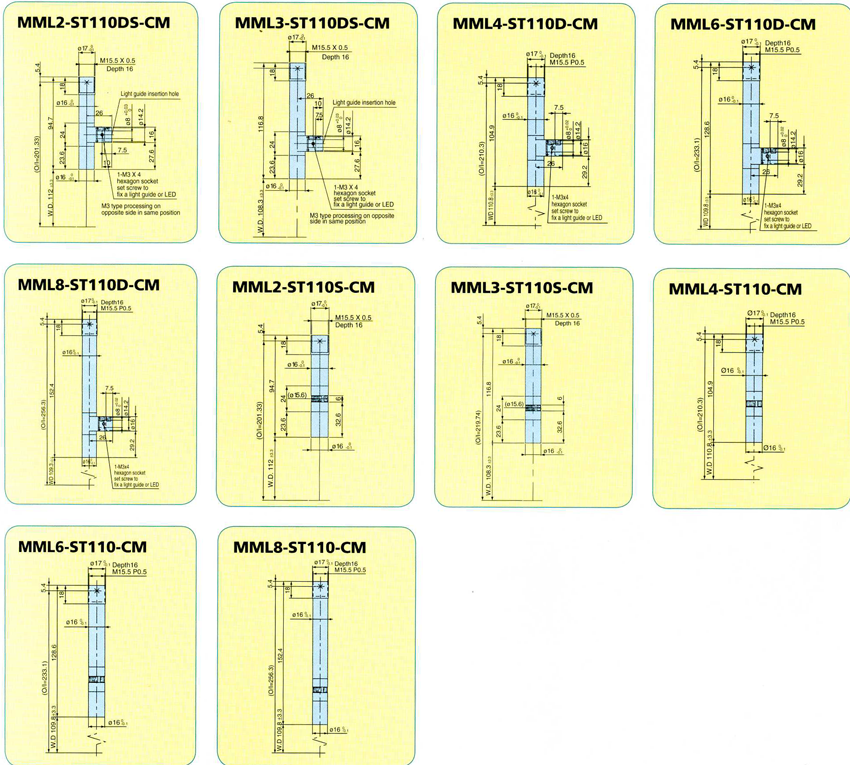

WD110mm
*Field depth values were calculated assuming a resolution equivalent to ½” CCD horizontal 240 TV display resolution (permitted circle of confusion diameter 40 µm).
However, design values from resolution are not used for *1
*Resolution values are for theoretical resolution at a wavelength of 550nm.
